The workhorse of blood collection.
Calibrated weighing, a non-level suspended tray built for harsh and mobile sites, and a deep tray that holds five bags, the HemoFlow standard, in a lightweight body that mounts or travels.
Engineered for the way blood actually gets drawn.
A non-level suspended tray, built for the real world.
The suspended tray allows non-level usage, a fit for harsh environments and mobile sites where a perfectly level surface is not a given. The deep tray holds five bags, and the rocking movement keeps every collection thoroughly, evenly mixed.
- Non-level tolerant, harsh environments and mobile sites
- Deep tray volume that holds five bags per draw
- Weight-calibrated to keep every collection viable
Runs all shift. Lasts for years.

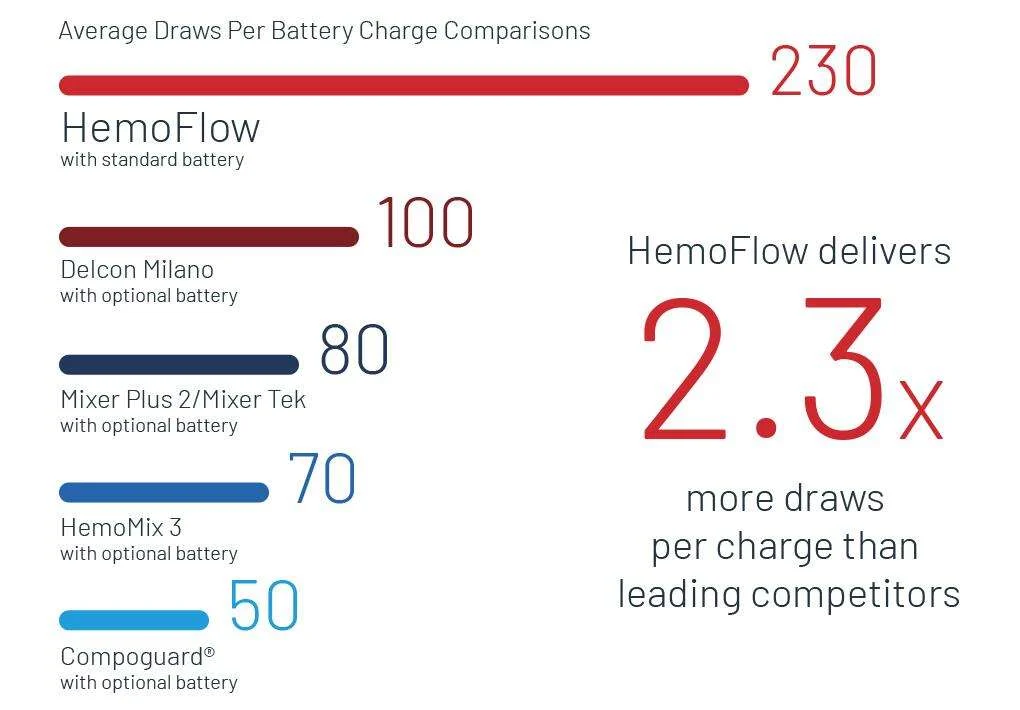

Up to 230 draws on a single charge, and the device keeps running while it charges, so a shift never stops for power. A safety lockout prevents a draw when there is not enough charge to finish it.
- Up to 230 draws per charge, operational while charging
- 5 to 7-year battery lifespan
- Safety lockout below usable power

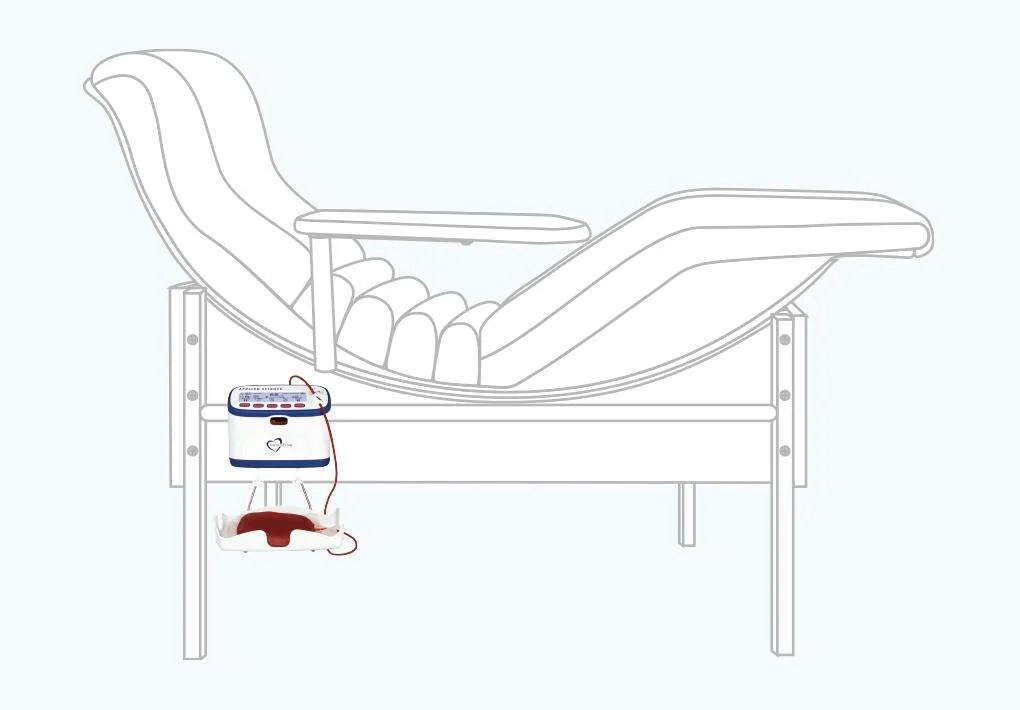

Mount it. Travel with it. Connect it.
A globally recognized design that mounts to beds, furniture, or floor stands, and travels in a two-device charging transport case for mobile drives. One-touch wireless updates and an integrated 2D scanner keep the 400 current and connected to the same software as the flagship.
- Flexible mounting, beds, furniture, or floor stands

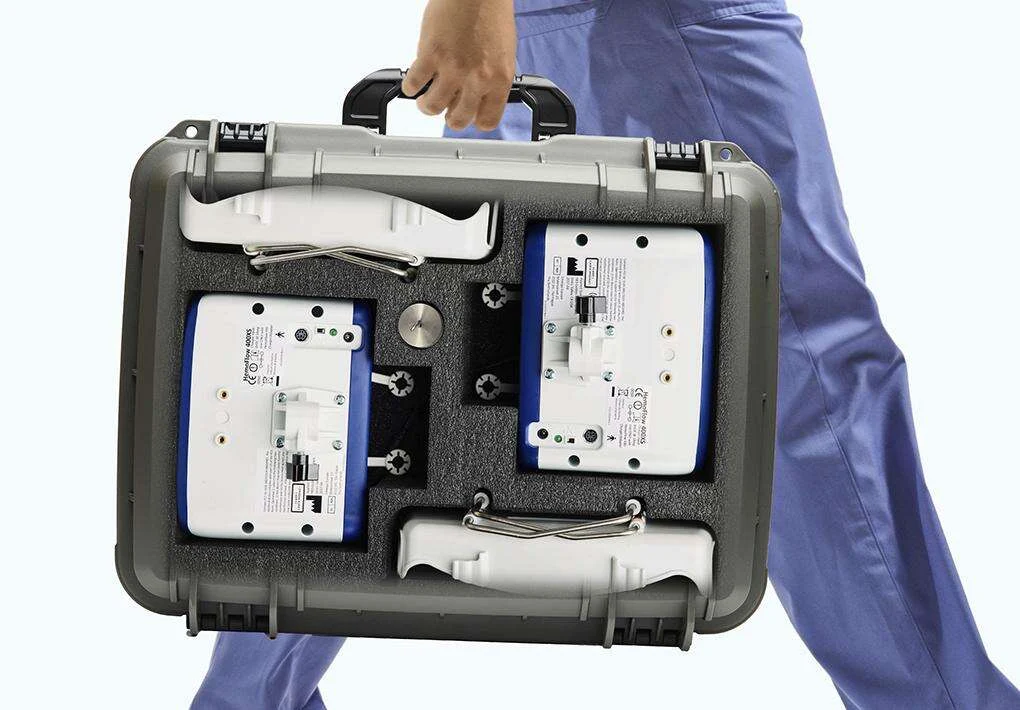

- Two-device charging transport case for mobile drives
- Works with HemoVue, CMRS, and VBV
Built to protect the donation, and the donor.
Multiple alert methods, LEDs, audio alarms, and a flashing backlit display, let staff address Low/High Flow, Low Battery, Bag Weight and Draw Timeout the moment they happen, with on-screen notifications recording each incident. A patented Scrub/Dry timer automates collection procedures to meet your SOPs, and the Smart Clamp works with the flow alarms to hit the target volume and cut QNS events.
- Patented Scrub/Dry timer and automated Smart Clamp
- Three customizable, pre-set collection volumes for standardized SOPs
- Three safety lock modes protect draw parameters from accidental change
Every draw becomes data your operation can use.
One-touch updates
Wireless firmware rolls out across the fleet with a single touch, no carts, no downtime.
On-site record
CMRS standardizes setup and pushes validated collection data straight into your facility systems.
Right volume per donor
The VBV option works with the XS to calculate the appropriate collection volume for each donor.
Fleet in one view
HemoVue puts every device, operator, and site on the same live dashboard, with the reports leadership needs.
HemoFlow 400, at a glance.
| Positioning | Globally recognized workhorse |
|---|---|
| Tray | Non-level suspended tray, holds 5 bags |
| Draws per charge | Up to 230 |
| Battery lifespan | Up to 7 years |
| Charging | Operational while charging; two-device transport case |
| Display | Unobstructed view, readable from a distance |
| Mounting | Beds, furniture, or floor stands, flexible options |
| Alerts | LEDs, audio alarms, flashing backlit display; Low/High Flow, Low Battery, Bag Weight, Draw Timeout |
| Automation | Patented Scrub/Dry timer; automated Smart Clamp |
| Collection volumes | Three customizable presets; adjustable duration and timeout |
| Safety locks | Three lock modes standard |
| Scanning | Integrated 2D barcode scanner, cableless |
| Records | Up to 200 collections stored permanently, retained through power loss |
| Data | One-touch wireless updates; USB and wireless transfer; bi-directional Xbee; automated BECS transfer |
| Software | HemoVue, CMRS, and VBV (XS variant) |
| Accessories | Full accessory catalog |
Put the HemoFlow 400 in your workflow.
Tell us about your sites and fleet. We'll show you the device, the software, and the numbers that matter for your program, no obligation.
